Flameproof Light

flameproof lights used in distillery, sugar mill, gas stations, industries, factory etc.

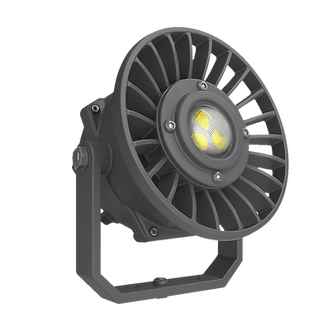

Flameproof LED Light (40W–200W)


Designed for Zone 1, Zone 2, Zone 21 & Zone 22 hazardous environments, this Flameproof LED Luminaire ensures safe, efficient, and durable lighting in areas with explosive gas or dust atmospheres. With a wide power range of 40W to 200W, it complies with the strictest performance, safety, and durability standards required for Oil & Gas, petrochemical, power, and heavy industrial installations.

Applications

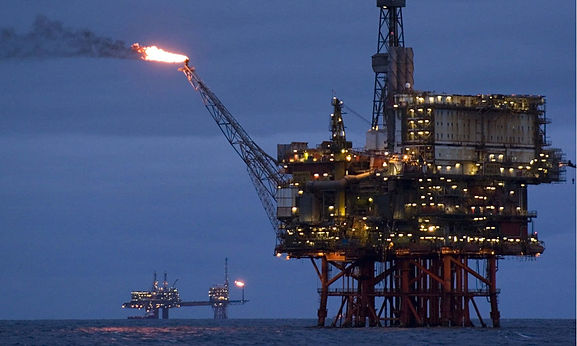

  • Oil & Gas Platforms (Onshore/Offshore)

  • Petrochemical & Chemical Plants

  • Fertilizer Units

  • Thermal & Nuclear Power Plants

  • Paint Shops and Battery Rooms

  • Refineries and Process Areas

  • Zone-Classified Industrial Warehouses

Key Features & Benefits

Power Range: 40W to 200W
High Efficacy: Up to 130 lm/W for energy savings
Housing: Flameproof body made from Copper-Free Aluminium Alloy LM6
Glass: Toughened heat-resistant clear glass with high impact strength
IP Rating: IP66 – completely protected from dust and high-pressure water jets
Impact Resistance: IK08/IK10 rated robust construction
Gas Group Compatibility: IIA, IIB, IIC
Temperature Class: T6 / T5
Ambient Temperature Range: -20°C to +55°C
Light Distribution: Glare-free uniform light with optional symmetric or asymmetric beam angles
Color Temperature: 4000K / 5700K

CRI > 70 for visual clarity

Mounting Options: Ceiling, Wall, Bracket, Pole mounting

Cable Entries: 2 nos. (¾” ET / NPT / Metric)

Driver Specs:

Isolated electronic driver

Power Factor > 0.95, THD < 10%

Driver efficiency ≥ 90%

Inbuilt 10kV surge protection

Over-voltage, over-current, and thermal protection

Lumen Maintenance: ≥50,000 hours (L70 at 25°C)

Warranty: 2 to 5 years based on project scope
