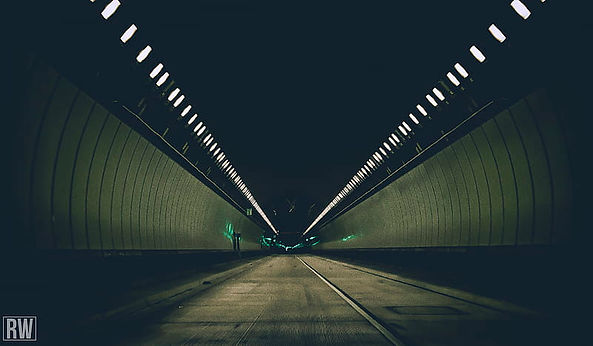

Tunnel Light

Light used in Tunnel, Road Tunnel, Railway Tunnel, TBM Tunnel Etc.

Glare-Free LED Tunnel Lighting Solution (30W–400W)

Specially designed for roadway and railway tunnel applications, this glare-free tunnel light range (30W to 400W) delivers uniform illumination, low glare, and high visual comfort, meeting the stringent technical requirements of national highway and rail infrastructure projects.

The luminaire is designed according to tunnel lighting zone guidelines (threshold, transition, and interior zones) as per international standards such as CIE 88:2004, IRC:SP 90, and other relevant BIS specifications. It ensures enhanced visibility, safety, and comfort for drivers and maintenance personnel.

Applications

  • Road tunnels (NHAI / MoRTH Projects)

  • Railway tunnels (RVNL, IRCON, DMRC, etc.)

  • Metro rail underpasses and pedestrian tunnels

  • Mining and underground passageways

  • Flyover underpasses

  • Service tunnels

Key Features & Benefits

  • Wide Wattage Range: 30W to 400W to suit various tunnel zones (threshold, transition, interior)

  • High Efficacy: Up to 130 lm/W for optimal energy savings

  • Glare-Free Optics: Special lens/diffuser design for uniform, low-glare distribution (UGR < 19)

  • Robust Housing: Pressure die-cast aluminium body with corrosion-resistant powder coating

  • IP66 Rated: Protection against dust and high-pressure water jets

  • IK08 / IK10 Impact Rating: Resistant to mechanical shocks and vibrations

  • THD < 10% and PF > 0.95, compliant with energy efficiency norms

  • Surge Protection: Inbuilt 10kV SPD (Surge Protection Device)

  • Color Temperature: 4000K – 5700K (Neutral to Cool White)

  • CRI > 70 for color clarity in tunnel environments

  • Driver Protection: Isolated, short-circuit, over-voltage & over-temperature protection

  • System Efficiency: ≥ 90% electronic driver efficiency

  • Mounting: Adjustable bracket for ceiling/wall/cantilever installation

  • Lumen Maintenance: ≥ 50,000 hours at L70

  • Dimming Option: 0–10V / DALI dimming available for adaptive lighting systems

  • 2 to 5-year warranty based on project requirement

  • Design Compliance & Standards

  • Designed per CIE 88:2004 tunnel lighting guide

  • As per IRC:SP-90-2010 and MoRTH Section 801 lighting guidelines

  • Luminance levels and uniformity optimized for Threshold, Transition, and Interior Zones

  • Suitable for photometric analysis (IES/LDT format) for tunnel simulation software.

  • Conforms to IS 10322, IS 16107, and BIS energy standards

  • Available Optics

  • Symmetric & Asymmetric beam distributions

  • Wall-wash and low-glare options

  • Custom photometric distributions on request
